SPECIFICATION / 01
Technical Info
LED Configuration
6x dim-to-warm white LED cells + RGBW glow
Colour Temperature
1600-3200K
CRI
>90
Power Consumption
Max 300W, 100-240V
Power Connector
PowerCon TRUE1 (power-through)
DMX Modes
6 modes, 12-67 channels
Connector
5-pin XLR in/out
IP Rating
IP20
Weight
12.5kg
Dimensions
1720 x 210 x 170mm
Strobe
Electronic
Dimming
16-bit dimming and colour mixing
Control protocols
DMX512, RDM; optional W-DMX
DMX channels / modes
6 modes, 12–67 channels
IP rating
IP20
Power requirements
100–240 V AC, 50/60 Hz; 300 W
Mounting
Included base and hanging adaptor; multiple rigging points
Dimensions
1720 × 210 × 170 mm
Weight
12.5 kg
Product video
PRODUCT NOTES / 02
Additional Information

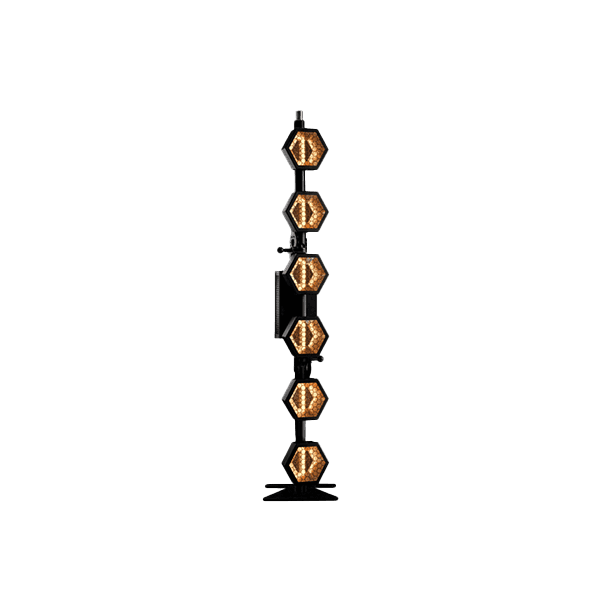

The Portman Lights P2 Evo is a linear accent fixture combining 6 dim-to-warm white LED cells (1600-3200K, CRI90+) with RGBW glow capability, giving a soft warm light with saturated colour options across a longer, narrower form factor than the P1 Evo, suited to linear architectural and stage dressing runs.
It draws up to 300W from a universal 100-240V supply via PowerCon TRUE1 power-through connectors, and offers 6 selectable DMX modes from 12 to 67 channels via 5-pin XLR with RDM support and an optional W-DMX wireless module.
