SPECIFICATION / 01
Technical Info
Wash Engine
400W RGBW, 11 sections, 7,874 lumens, 81° beam
Strobe Engine
700W white, 60 sections, 23,541 lumens, 111° beam
Colour Temperature
3000K + RGB (wash, CRI 85); 6500K white (strobe, CRI 70)
IP Rating
IP65
Power Requirements
100-240V, 50/60Hz, up to 750W
Power Connector
PowerCON TRUE1
Control
DMX512, RDM, CRMX (optional)
DMX Modes
7 modes, 8-220 channels
Weight
12kg
Dimensions
54 x 15 x 19cm
Product video
PRODUCT NOTES / 02
Additional Information

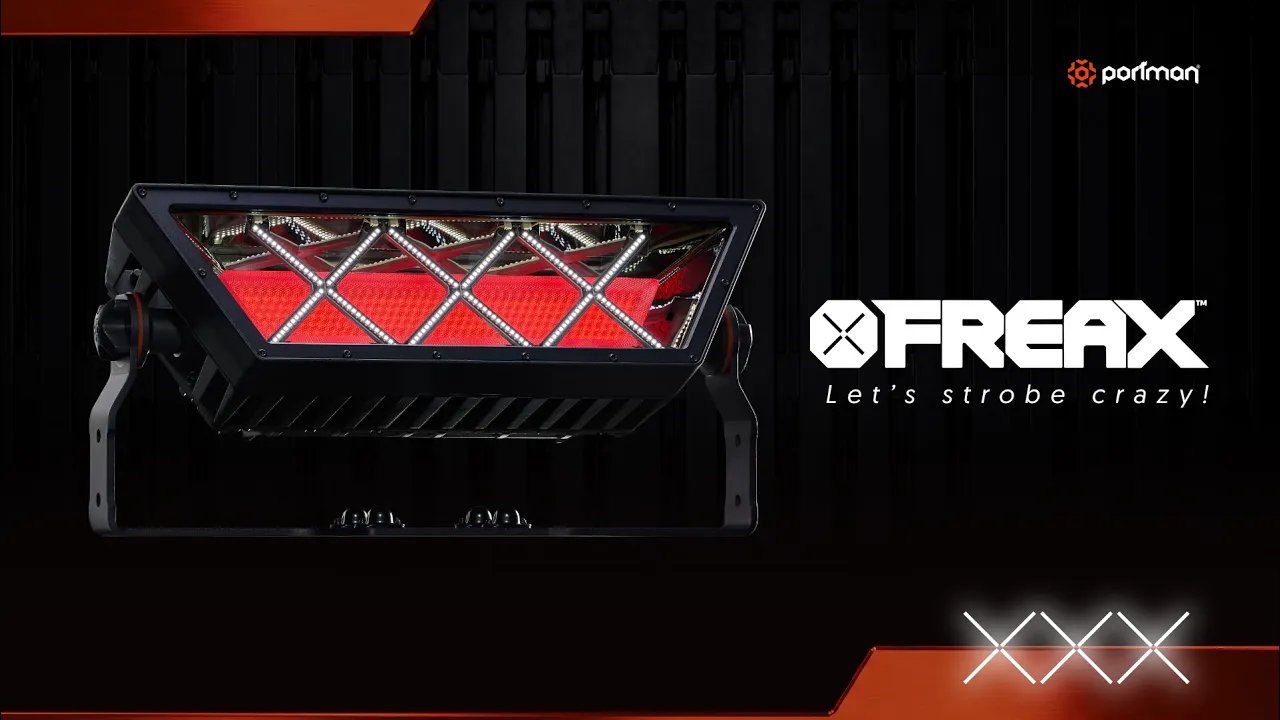

The Portman Lights FREAX combines two light engines in a single IP65 fixture: an 11-section 400W RGBW wash using Portman’s LIQUIDshine technology for smooth colour mixing (3000K + RGB, CRI 85), and a separate 700W TRI-X white strobe with 60 independently controllable sections for aggressive, high-speed strobe effects.
Weighing 12kg and drawing up to 750W, it’s controlled over DMX512, RDM or optional CRMX wireless, with 7 DMX modes offering 8 to 220 channels and follower/influencer grouping, making it a flexible single-fixture solution for productions that want wash colour and hard strobe from the same rig position.
