SPECIFICATION / 01
Technical Info
Main Light Engine
120W HaloLED FC Core (WW + RGB)
Front Matrix
30W SMESH, 13 individually mappable RGB pixels
Colour Temperature
1600-3200K plus full RGB
CRI
82
Beam Angle
94°
IP Rating
IP65
DMX Protocols
DMX512, RDM, WDMX (optional)
DMX Modes
7 modes, 9-94 channels
Weight
6.5kg
Rigging
FastLink 12mm connection points included
Cooling
Active fan
Product video
PRODUCT NOTES / 02
Additional Information

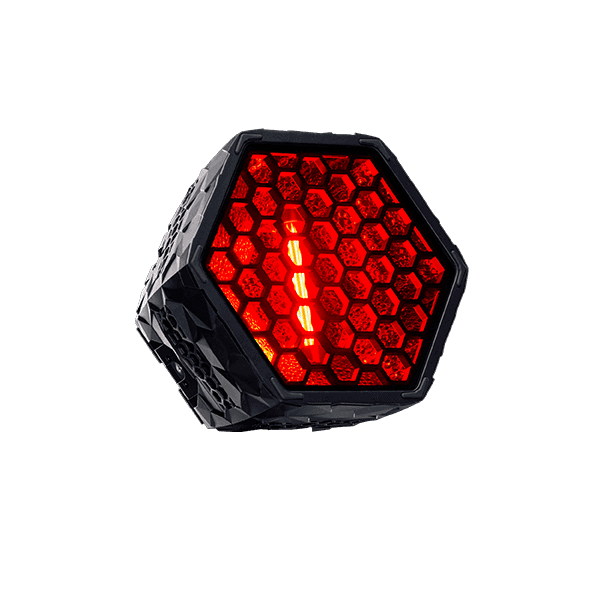

The Portman Lights HEXY is an IP65-rated hexagonal LED fixture combining a 120W HaloLED FC Core (warm white plus RGB, 1600-3200K tungsten emulation with CRI82) with a 30W SMESH front matrix of 13 individually mappable RGB pixels, giving both a warm wash source and a dynamic pixel-mapped video-style canvas from a single fixture.
Housed in a sculpted aluminium 3D HEXskin armour built for severe mainstage weather conditions, it offers 7 DMX modes from 9 to 94 channels with DMX512, RDM and optional WDMX control, an OLED display for on-unit setup, and FastLink 12mm rigging points as standard, making it suited to touring mainstages, broadcast and architainment installs.
