SPECIFICATION / 01
Technical Info
LED Configuration
7x dim-to-warm white LEDs + RGBW glow
Colour Temperature
1600-3200K
CRI
>90
Power Consumption
Max 340W, 100-240V
Power Connector
PowerCon TRUE1 (power-through)
DMX Modes
6 modes, 13-77 channels
Connector
5-pin XLR in/out
Wireless
Optional W-DMX module
Weight
12.5kg
Dimensions
850 x 990 x 170mm
Strobe
Electronic
Dimming
16-bit dimming and colour mixing
Control protocols
DMX512, RDM; optional W-DMX
DMX channels / modes
6 modes, 13–77 channels
IP rating
IP20
Power requirements
100–240 V AC, 50/60 Hz; 340 W
Mounting
Yoke with 13 mm clamp hole
Dimensions
1000 × 840 × 170 mm
Weight
11.5 kg
Product video
PRODUCT NOTES / 02
Additional Information

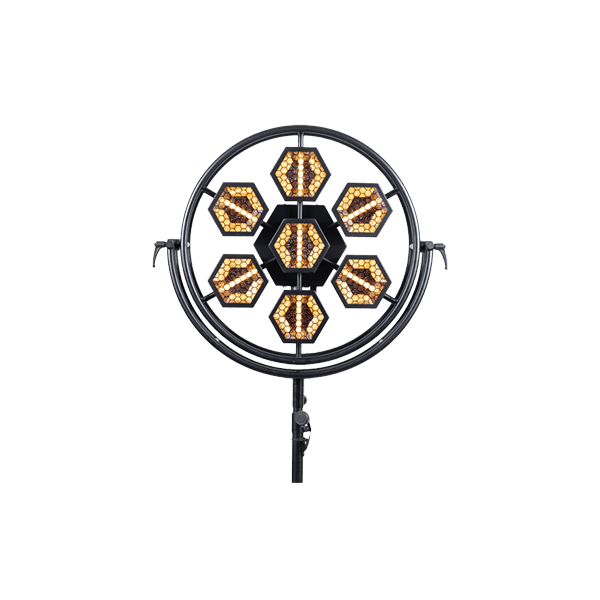

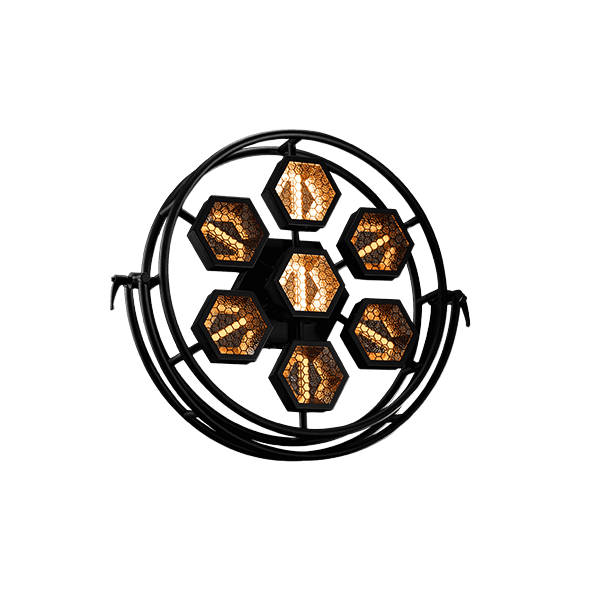

The Portman Lights P1 Evo combines 7 dim-to-warm white LEDs (1600-3200K, CRI90+) with RGBW glow capability, giving a soft, tungsten-style warm light with the option to shift into saturated colour, well suited to atmospheric backdrops and decorative stage dressing.
It draws up to 340W from a universal 100-240V supply via PowerCon TRUE1 power-through connectors for easy daisy-chaining, and offers 6 selectable DMX modes from 13 to 77 channels via 5-pin XLR with RDM support and an optional W-DMX wireless module.
