SPECIFICATION / 01
Technical Info
LED Configuration
3x dim-to-warm white LEDs, 3x RGBW glow LEDs, 1x RGBW centre source
Colour Temperature
1600-3200K + RGBW
CRI
>90
Power Consumption
Max 250W, 100-240V
DMX Modes
6 modes, 21-43 channels
Connector
5-pin XLR in/out
Wireless
Optional W-DMX module
IP Rating
IP20 (indoor)
Weight
7.9kg
Dimensions
648 x 648 x 170mm
Strobe
Electronic
Dimming
16-bit dimming and colour mixing
Control protocols
DMX512, RDM; optional W-DMX
DMX channels / modes
6 modes, 21–43 channels
IP rating
IP20
Power requirements
100–240 V AC, 50/60 Hz; 240 W
Mounting
Yoke with 13 mm clamp / spigot hole
Dimensions
560 × 640 × 190 mm
Weight
7 kg
Product video
PRODUCT NOTES / 02
Additional Information

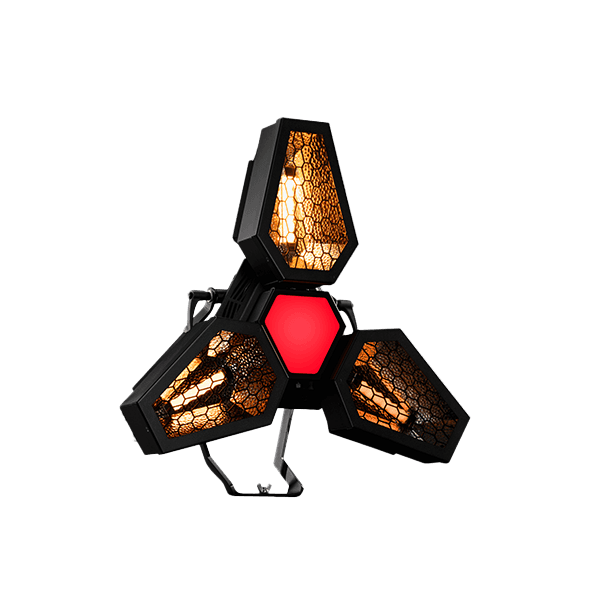

The Portman Lights Mantis combines 3 dim-to-warm white LEDs (1600-3200K) with 3 RGBW glow LEDs and a central RGBW source, giving both a soft, warm filament-style glow and vivid saturated colour from a single compact fixture, ideal for atmospheric backdrops, bars and lounge-style event dressing.
It carries a CRI above 90 for accurate colour rendering, runs 6 selectable DMX modes from 21 to 43 channels via 5-pin XLR, with RDM support and an optional W-DMX wireless module, and draws up to 250W from a universal 100-240V supply.
