SPECIFICATION / 01
Technical Info
Product type
Portable remote I/O expander
System role
Remote microphone inputs and line outputs for Allen & Heath 96 kHz mixing systems
Input capacity
16 input channels
Local inputs
16 balanced XLR mic/line inputs with recallable preamps and +48 V phantom power
Output capacity
8 output channels
Local outputs
8 balanced, relay-protected XLR line outputs at nominal +4 dBu
Console compatibility
dLive, Avantis, SQ and AHM-64
Audio transport protocol
DX protocol over Cat5e or higher cable
Sample rate
96 kHz
I/O expansion
A second DX168, DX012 or DX164-W can be connected in Cascade mode
Redundancy
Dual-cable redundant connection on compatible hardware using DX A and DX B
Power requirements
100–240 V AC, 50–60 Hz, 35 W maximum
Dimensions
410 × 190 × 185 mm
Weight
4.6 kg
PRODUCT NOTES / 02
Additional Information

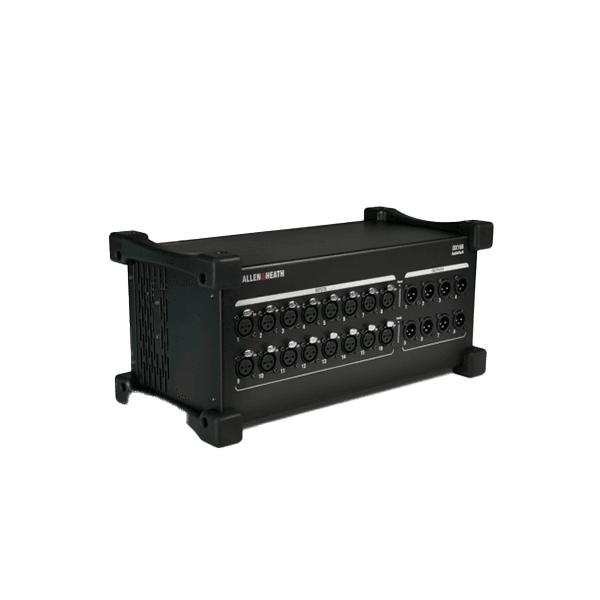

The Allen and Heath DX168 Stagebox expands the audio input, output or processing capability of a compatible professional mixing system. It is useful for larger stages and event setups where audio connections need to be positioned closer to performers and equipment while remaining linked to the main mixing position.
