SPECIFICATION / 01
Technical Info
Product type
dLive S Class MixRack
System role
XCVI processing engine with no local analogue I/O
Input capacity
128 fully processed input channels
Local inputs
No local mic/line inputs
Output capacity
64 fully processed mix outputs with a configurable 64-bus architecture
Local outputs
No local analogue line outputs
Console compatibility
dLive S Class and C Class surfaces; dLive Director and compatible remote-control apps
Audio transport protocol
gigaACE, DX and ME; additional formats available through optional I/O cards
Sample rate
96 kHz
I/O expansion
3 × 128-channel 96 kHz I/O card ports, redundant DX links and a dedicated ME port
Redundancy
Redundant gigaACE and DX links; dual redundant power supplies
Power requirements
100–240 V AC, 47–63 Hz, 90 W maximum per PSU
Dimensions
482.6 × 355 × 176 mm (4U)
Weight
12 kg
Product video
PRODUCT NOTES / 02
Additional Information

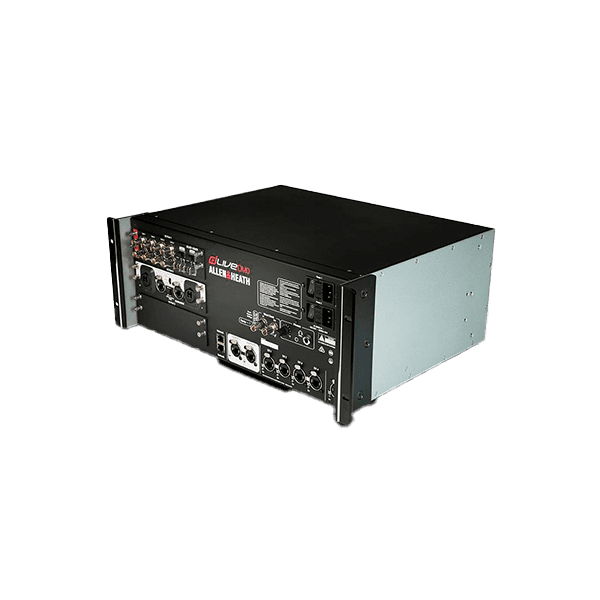

The Allen & Heath DM0 Mix Rack is the processing core of a dLive audio system. It can be paired with compatible control surfaces and stage I/O to manage microphones, playback sources, routing and outputs for conferences, live music and larger productions.
