SPECIFICATION / 01
Technical Info
Product type

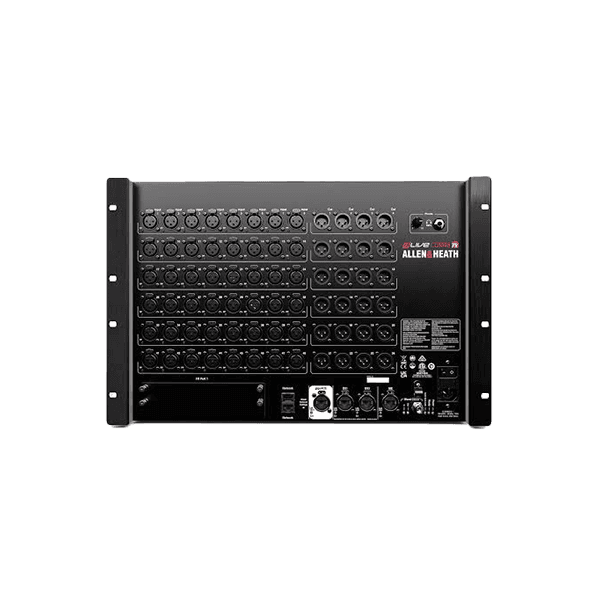

dLive C Class MixRack
System role
XCVI mix engine with integrated stage I/O
Input capacity
128 fully processed input channels
Local inputs
48 balanced XLR mic/line inputs with recallable preamps and +48 V phantom power
Output capacity
64 fully processed mix outputs with a configurable 64-bus architecture
Local outputs
24 balanced, relay-protected XLR line outputs
Console compatibility
dLive S Class and C Class surfaces; dLive Director and compatible remote-control apps
Audio transport protocol
gigaACE, DX and ME; additional formats available through an optional I/O card
Sample rate
96 kHz
I/O expansion
1 × 128-channel 96 kHz I/O card port, two DX links for up to four DX expanders and a dedicated ME port
Redundancy
Single gigaACE surface link and single PSU; DX redundancy requires optional DX Hub or DX Link hardware
Power requirements
100–240 V AC, 50–60 Hz, 175 W maximum
Dimensions
481.6 × 309 × 310 mm (7U)
Weight
12 kg

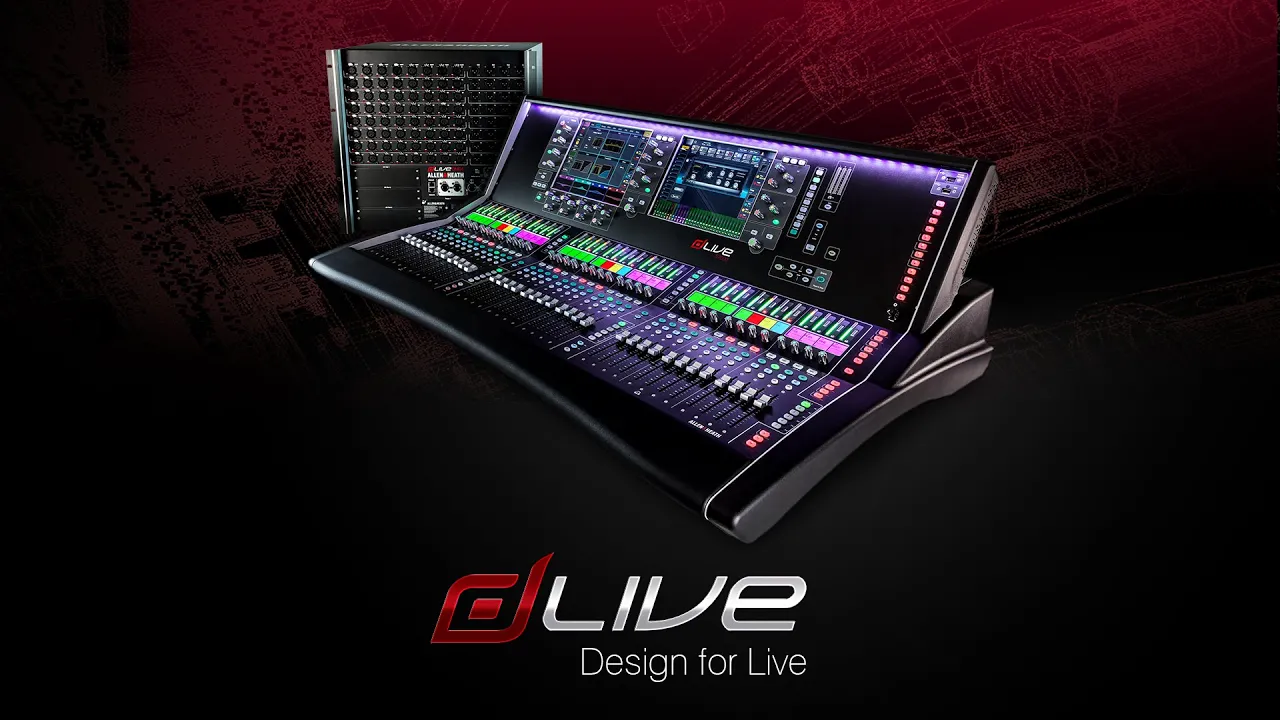

Product video
PRODUCT NOTES / 02
Additional Information
The Allen and Heath CDM48 Mix Rack expands the audio input, output or processing capability of a compatible professional mixing system. It is useful for larger stages and event setups where audio connections need to be positioned closer to performers and equipment while remaining linked to the main mixing position.
