SPECIFICATION / 01
Technical Info
Configuration
2 x 1:4 active RF splitter
Frequency Range
470 - 694MHz
Receiver Capacity
Up to 4 EW-D/EW-DX receivers
DC Power Distribution
Yes, for compatible active antennas/boosters
Cascade Output
Yes, for expansion
Dimensions
351 x 232 x 75mm
Weight
Approx. 2.5kg
Channel capacity
Up to 4 diversity receivers per unit
Antenna power
DC power available for compatible active antennas and receivers
Cascading / redundancy
Cascade outputs support expanded systems
Compatible systems
Sennheiser EW-D and compatible receivers
Mounting
Half-rack installation
Power requirements
External DC power supply
Additional information
Provides RF and power distribution
Product video
PRODUCT NOTES / 02
Additional Information

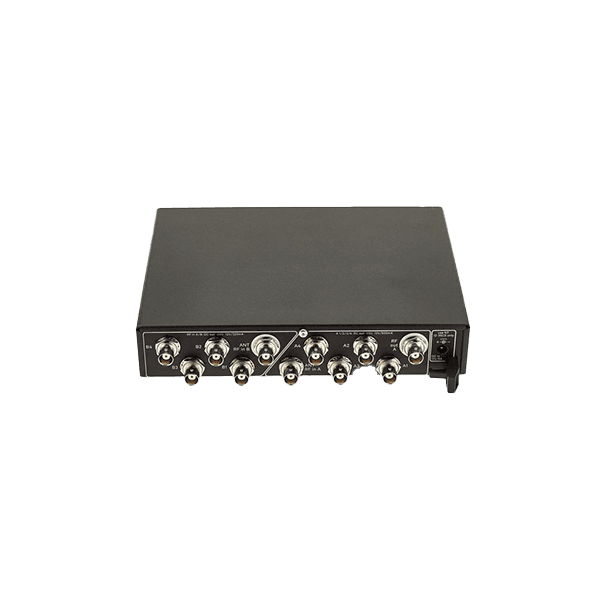

The Sennheiser EW-D ASA is an active antenna splitter covering 470-694MHz, distributing a single antenna signal to up to four EW-D or EW-DX wireless receivers (2 inputs x 1:4 outputs), and supplying DC power to compatible active antennas and boosters at the same time.
It includes an RF cascade output for linking additional units on larger multi-channel systems, ships with 8 BNC antenna cables and a dedicated power supply, and is built as a compact rack unit for touring and installed wireless microphone setups.
