SPECIFICATION / 01
Technical Info
Product type
All-in-one LED display controller
Maximum input resolution
4096x2160 @ 60Hz
Inputs
3x HDMI 2.0, 1x DisplayPort 1.2, 1x 12G-SDI
HDR support
HDR10, HLG
Outputs
20x Gigabit Ethernet
Maximum load capacity
Approx. 9 million pixels
Control software
NovaStar VMP (Vision Management Platform)
HDR support
HDR10 and HLG
Genlock
Bi-level / tri-level input with loop-through
Control software
NovaStar VMP via dual Gigabit Ethernet control ports
Power requirements
100–240 V AC, 50/60 Hz, 1.5 A; 95 W maximum
Dimensions
482.6 × 94.2 × 467 mm
Weight
7.5 kg
PRODUCT NOTES / 02
Additional Information
The NovaStar MX40 Pro LED Display Controller is a 4K all-in-one processor and sender built for large-format LED video walls on live events, corporate stages and broadcast sets. It accepts up to four simultaneous inputs — 3x HDMI 2.0, 1x DisplayPort 1.2 and 1x 12G-SDI — supporting resolutions up to 4096x2160 at 60Hz, including HDR10 and HLG sources, so operators can switch or layer multiple camera and playback feeds directly into the wall without an external scaler.

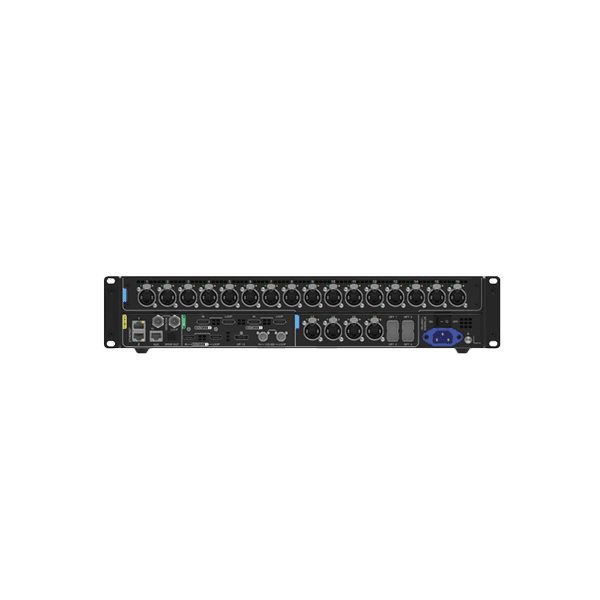

On the output side, the MX40 Pro drives up to 20 Gigabit Ethernet ports, giving it the bandwidth to control screens of up to roughly 9 million pixels from a single unit. It is managed through NovaStar’s VMP (Vision Management Platform) software, giving technicians full control over scaling, layering, colour calibration and redundancy switching, making it a strong fit for touring LED screen packages and fixed-install video wall hire.
