SPECIFICATION / 01
Technical Info
Product type
Ultra-compact beam moving head
Fixture type
Beam with RGB eye-candy backlight
Beam light source
1 × 20 W laser-illuminated light engine
Backlight source
24 × 0.25 W RGB LEDs
Peak intensity
7,000,000 cd
Beam angle
0.40° half-peak; 0.80° field angle
Front lens
120 mm
Colour system
CMY beam mixing; RGB backlight; 2,000–12,850 K virtual CCT
Pan / tilt
540° pan / 225° tilt
Dimming / strobe
0–100% dimming; regular and random strobe
Pixel control
Individual control of 24 backlight pixels
Control protocols
DMX, RDM, Art-Net, sACN and Martin P3
Effects
More than 200 built-in FX macros; P3 video mapping
Refresh rate
19,200 Hz beam; 1,200 Hz backlight
Noise
Theatre / Broadcast mode: 21.5 dB(A)
Environmental rating
Indoor
Mounting
Omega bracket, M12 clamp holes; optional four-bar / grid accessories
Dimensions
254 × 303 × 233 mm overall envelope
Weight
4.95 kg

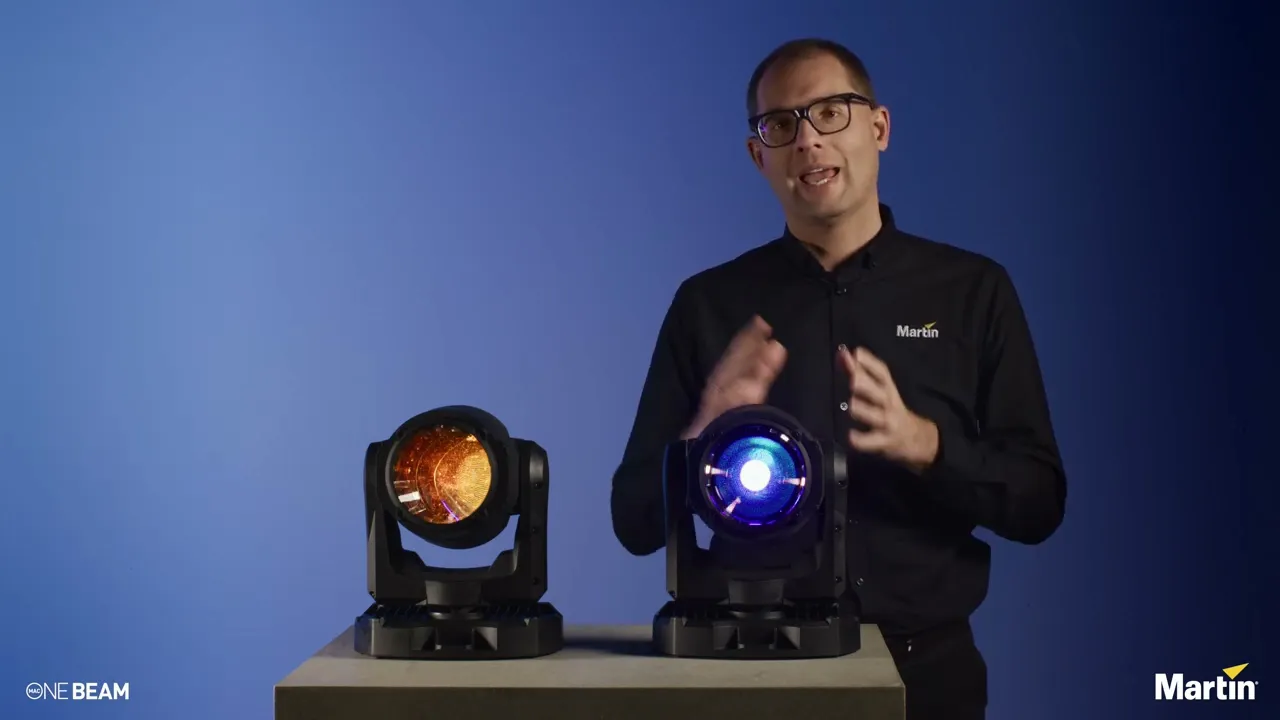

Product video
PRODUCT NOTES / 02
Additional Information
The Martin MAC One Beam produces a concentrated moving beam for dynamic aerial effects and stage looks. Its compact format makes it suitable for live music, corporate events and productions where multiple fixtures can be arranged into flexible lighting designs.
